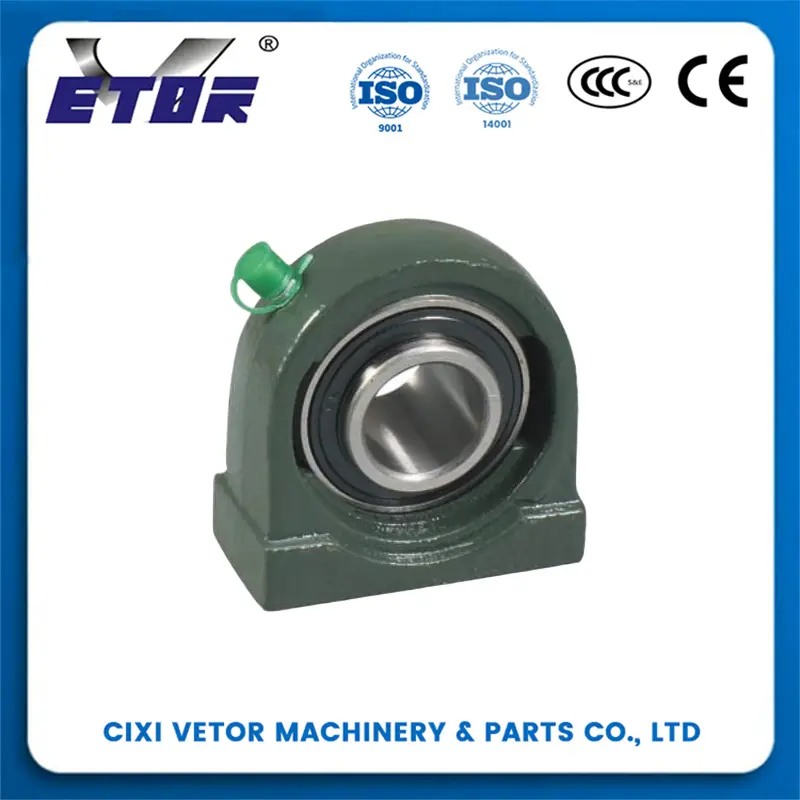

The UCPA206 Pillow Block Bearing is a highly versatile mounted bearing assembly, widely utilized across industrial, agricultural, and light mechanical sectors. It integrates a 206-series deep groove ball bearing—with a standardized inner diameter of 30mm, outer diameter of 62mm, and width of 38.1mm—into a rugged cast iron pillow block housing.
Combines the bearing, cast iron housing, and mounting hardware into a single pre-assembled unit, simplifying installation, reducing setup time, and lowering operational complexity for on-site technicians.
Engineered to primarily handle radial loads, with the rigid cast iron housing enhancing structural stability under moderate to heavy load conditions, ensuring consistent performance during long-term operation.
Compensates for slight angular and parallel shaft misalignments caused by installation errors or equipment vibration, minimizing friction, reducing component wear, and extending the bearing's service life.
The cast iron housing offers strong corrosion resistance and impact resistance, while the sealed bearing structure effectively prevents dust, debris, and moisture ingress, reducing the need for frequent lubrication and maintenance.
1. Conveyor Systems: Essential for supporting rotating rollers in belt conveyors, roller conveyors, and chain conveyors, widely used in logistics warehouses, mining sites, and manufacturing workshops for material transportation.
2. Agricultural Machinery: Ideal for harsh farm environments, applied in grain harvesters, corn threshers, feed mixers, and irrigation water pumps to support key rotating shafts with stable performance.
3. Industrial Processing Equipment: Used in textile machines (e.g., spinning frames), printing presses, woodworking machinery (e.g., sawmills), and packaging equipment to ensure smooth operation of transmission systems.
4. General Mechanical Devices: Suitable for small and medium-sized fans, water pumps, air compressors, and electrical machinery, providing cost-effective and reliable rotational support for daily production and operation.
What are the key dimensions of the UCPA206 pillow block bearing?
The UCPA206 features a standardized inner diameter (shaft size) of 30mm, an outer bearing diameter of 62mm, and a total width of 38.1mm.
What materials are used to construct the UCPA206 assembly?
It integrates a high-strength chrome steel deep groove ball bearing within a heavy-duty cast iron pillow block housing for optimal durability and load capacity.
How does the self-aligning feature of the UCPA206 work?
The outer ring of the bearing and the inner bore of the housing are spherical. This allows the assembly to compensate for slight angular and parallel shaft misalignments, reducing friction and wear.
Is the UCPA206 bearing suitable for outdoor or dusty environments?
Yes, the bearing is sealed to protect the internal components from dust, moisture, and debris, making it ideal for agricultural and industrial processing applications.
Does this pillow block bearing require regular maintenance?
The UCPA206 is designed for low maintenance. However, it features a grease fitting on the cast iron housing, allowing for periodic relubrication to extend its service life in demanding environments.
