The CG125 CDI is an advanced ignition system upgrade over traditional contact-breaker ignition setups. It primarily consists of a capacitor, a trigger circuit, and a high-voltage output stage. The capacitor stores electrical energy, which is then rapidly discharged through the ignition coil when triggered by the engine's rotation sensor. This process creates a high-voltage spark that ignites the fuel within the engine.

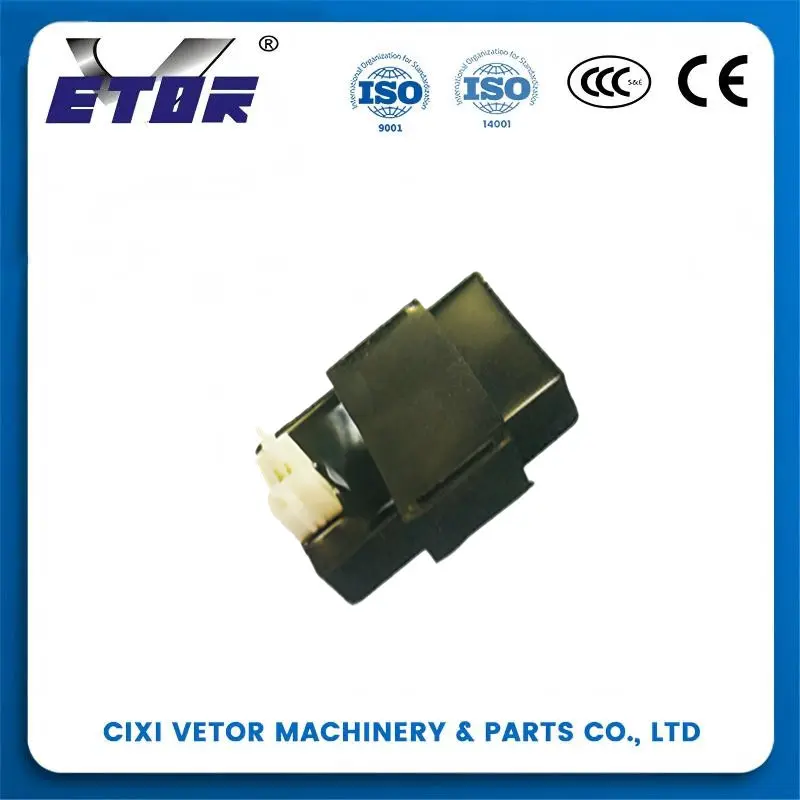

The CDI unit is compactly designed to fit into the limited space available on a CG125 motorcycle. It is typically encased in a durable plastic or resin-based housing that protects the internal electronic components from dust, moisture, and mechanical vibrations during the motorcycle's operation.
The CDI unit provides a consistent and powerful spark, ensuring reliable engine starting, even in cold conditions or after long periods of non-use. This reliability is crucial for daily commuting and other regular motorcycle operations.
Unlike traditional contact-breaker ignition systems that are prone to wear and tear due to moving parts, the CG125 CDI has no mechanical contacts. This significantly reduces the risk of component failure and extends the overall lifespan of the ignition system.
By delivering a precisely timed and high-energy spark, the CDI enhances the engine's combustion efficiency. This results in better fuel economy, increased power output, and smoother engine performance across different RPM ranges.
The enclosed housing design makes the CDI unit resistant to dust, water splashes, and temperature variations. This ensures that it can function optimally in various riding conditions, from urban environments to more rugged terrains.
It is commonly used as a direct replacement for the original CDI unit in CG125 motorcycles when the existing unit fails or becomes less efficient over time.
Motorcycle enthusiasts may choose to install a high-performance CG125 CDI to enhance the engine's power and responsiveness, especially when modifying or tuning their bikes.
For motorcycle rental fleets or commercial motorcycle-based services that use CG125 models, the CDI unit is an essential component for routine maintenance to keep the motorcycles in good working condition.
In motorcycle repair shops, the CG125 CDI is a frequently stocked item to address ignition-related issues in CG125-series motorcycles.
| Specification Item | Details |
|---|---|
| Operating Voltage | Usually 12V DC (can vary depending on the specific model, some may support AC input from the motorcycle's magneto) |
| Spark Voltage | Generates a spark voltage of approximately 15,000 - 25,000 volts |
| Capacitor Capacity | Typically in the range of 47 - 100 microfarads |
| Operating Temperature Range | - 20°C to + 80°C |
| Dimensions (approximate) | Length: 60 - 80mm, Width: 30 - 40mm, Height: 20 - 30mm |
| Weight | Around 100 - 150 grams |
| Wiring Harness Connector Type | Specific multi-pin connectors designed to match the CG125 motorcycle's electrical system |
| Certification | May comply with industry standards such as ISO 9001 for quality management and relevant electrical safety standards |
Unlike older contact-breaker setups with moving parts subject to wear, the CDI unit uses a capacitor to store electrical energy and discharge it rapidly. This delivers a more consistent, high-voltage spark (approx. 15,000 - 25,000V) for improved starting reliability and engine combustion efficiency.
The unit generally operates on a 12V DC electrical system. However, compatibility can vary; some specific models are designed to support AC input directly from the motorcycle's magneto system.
Yes, it is highly suitable for performance upgrades. Motorcycle enthusiasts frequently install high-performance CDI units to optimize timing and spark energy, which results in better power output and throttle response.
Absolutely. The CDI unit features a durable plastic or resin-based enclosure. This outer housing shields the sensitive internal electronics from water splashes, dust, engine vibrations, and extreme temperatures ranging from -20°C up to +80°C.
Yes, it features specific multi-pin wiring harness connectors designed to match the factory electrical layout of standard CG125 motorcycles, making it an ideal direct replacement for worn or faulty original units.
