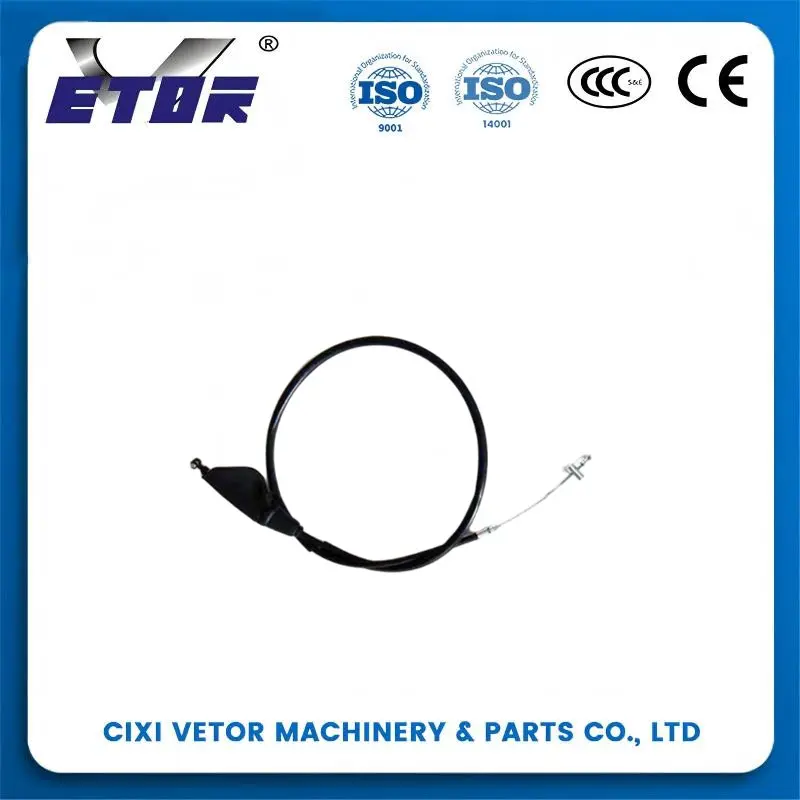

Designed exclusively for the iconic CG125 motorcycle—globally recognized for its ruggedness in commuter and light-duty use—the CG125 Clutch Cable is a critical replacement and upgrade part. Crafted to match OEM standards (and exceed in durability), it features a corrosion-resistant outer casing, high-strength inner steel wire, and reinforced end fittings. This combination minimizes friction, prevents stretching or snapping under frequent use, and maintains consistent performance in harsh conditions (e.g., dust, moisture, temperature fluctuations). Whether for daily commuting, off-road light riding, or fleet maintenance, it restores clutch responsiveness and extends the motorcycle's operational lifespan.
| Specification Item | Details |
| Product Model | CG125 Clutch Cable (Universal Fit for CG125 Series) |
| Total Length | 1250mm ± 5mm (Customizable for regional CG125 variants) |
| Inner Wire Material | High-Tensile Carbon Steel (19-strand braid, diameter 1.2mm) |
| Outer Casing Material | PVC/Nylon Blend (UV-resistant, temperature range: -20°C to +80°C) |
| Casing Diameter | 6mm (Outer) / 4mm (Inner Liner) |
| End Fitting Type | Zinc-Plated Steel Clevis Pin (Front) + Threaded Adjuster (Rear) |
| Adjuster Range | 0-15mm (for fine-tuning clutch play) |
| Breaking Strength | ≥ 2500N |
| Operating Friction Coefficient | ≤ 0.12 (dry condition) |
| Waterproof Rating | IP54 (splash-proof, dust-resistant) |
| Installation Type | Plug-and-Play (No additional hardware required) |
| Compatibility | All CG125 Models (e.g., Honda CG125, Chinese CG125 Clones, Bajaj CT100 Derivatives) |
| Weight | 85g ± 3g |
Yes, this clutch cable features a universal design that is fully compatible with original Honda CG125 models, Chinese CG125 clones, and Bajaj CT100 derivatives.
The inner wire is made of a high-tensile carbon steel 19-strand braid (1.2mm diameter) that provides a breaking strength of ≥ 2500N, effectively preventing stretching and fraying.
No, the cable features a low-friction inner liner that provides a dry friction coefficient of ≤ 0.12, ensuring smooth operation without mandatory regular greasing.
Yes, it includes a rear-threaded zinc-plated steel adjuster with a range of 0-15mm, allowing you to easily fine-tune the clutch play to your preferred responsiveness.
Yes, the cable features a sealed PVC/Nylon outer casing with an IP54 waterproof rating, protecting the inner core from water, mud, and dust ingress.
The UV-resistant outer casing is designed to withstand harsh outdoor conditions and temperature fluctuations ranging from -20°C up to +80°C.
