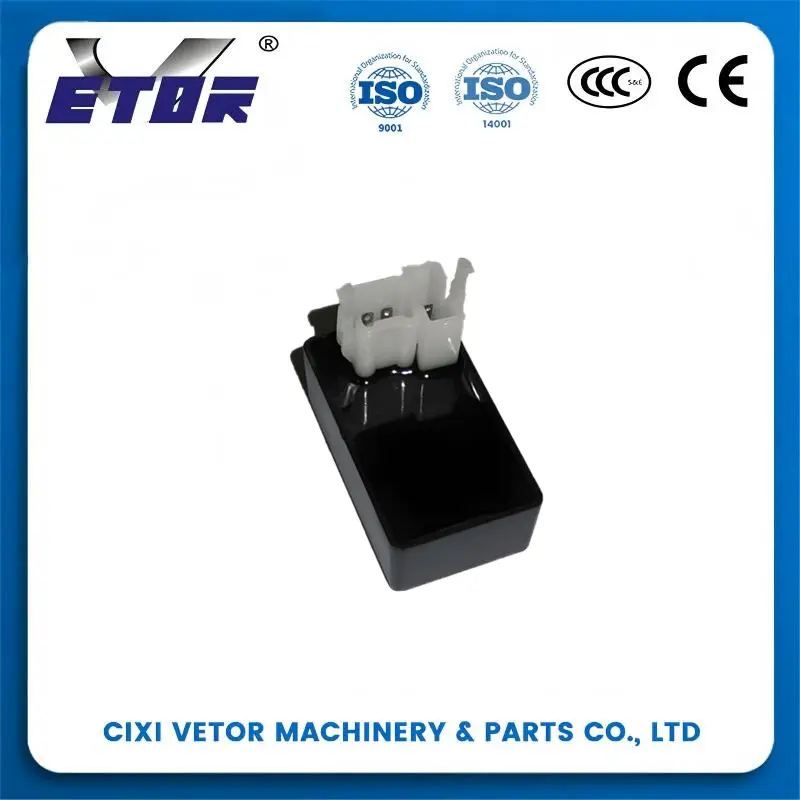

China The GN125 CDI Exporter, Exporters

The GN125 CDI (Capacitor Discharge Ignition) unit is a crucial electronic component designed specifically for GN125 - series motorcycles. It plays a vital role in generating high - voltage sparks to ignite the fuel - air mixture in the engine's combustion chamber, ensuring smooth and efficient engine operation.

Send Inquiry

Product Description

Product Overview

The CG125 CDI is an advanced ignition system upgrade over traditional contact-breaker ignition setups. It primarily consists of a capacitor, a trigger circuit, and a high-voltage output stage. The capacitor stores electrical energy, which is then rapidly discharged through the ignition coil when triggered by the engine's rotation sensor. This process creates a high-voltage spark that ignites the fuel within the engine.

The CDI unit is compactly designed to fit into the limited space available on a CG125 motorcycle. It is typically encased in a durable plastic or resin-based housing that protects the internal electronic components from dust, moisture, and mechanical vibrations during the motorcycle's operation.

Key Advantages

Reliable Ignition

The CDI unit provides a consistent and powerful spark, ensuring reliable engine starting, even in cold conditions or after long periods of non-use. This reliability is crucial for daily commuting and other regular motorcycle operations.

Longer Lifespan

Unlike traditional contact-breaker ignition systems that are prone to wear and tear due to moving parts, the CG125 CDI has no mechanical contacts. This significantly reduces the risk of component failure and extends the overall lifespan of the ignition system.

Improved Performance

By delivering a precisely timed and high-energy spark, the CDI enhances the engine's combustion efficiency. This results in better fuel economy, increased power output, and smoother engine performance across different RPM ranges.

Resistance to Environmental Factors

The enclosed housing design makes the CDI unit resistant to dust, water splashes, and temperature variations. This ensures that it can function optimally in various riding conditions, from urban environments to more rugged terrains.

Applications

1. OEM Replacement

It is commonly used as a direct replacement for the original CDI unit in CG125 motorcycles when the existing unit fails or becomes less efficient over time.

2. Performance Upgrades

Motorcycle enthusiasts may choose to install a high-performance CG125 CDI to enhance the engine's power and responsiveness, especially when modifying or tuning their bikes.

3. Fleet Maintenance

For motorcycle rental fleets or commercial motorcycle-based services that use CG125 models, the CDI unit is an essential component for routine maintenance to keep the motorcycles in good working condition.

4. Aftermarket Repairs

In motorcycle repair shops, the CG125 CDI is a frequently stocked item to address ignition-related issues in CG125-series motorcycles.

Product Specification

Specification Item	Details
Operating Voltage	Usually 12V DC (can vary depending on the specific model, some may support AC input from the motorcycle's magneto)
Spark Voltage	Generates a spark voltage of approximately 15,000 - 25,000 volts
Capacitor Capacity	Typically in the range of 47 - 100 microfarads
Operating Temperature Range	-20°C to +80°C
Dimensions (approximate)	Length: 60 - 80mm, Width: 30 - 40mm, Height: 20 - 30mm
Weight	Around 100 - 150 grams
Wiring Harness Connector Type	Specific multi-pin connectors designed to match the CG125 motorcycle's electrical system
Certification	May comply with industry standards such as ISO 9001 for quality management and relevant electrical safety standards

Frequently Asked Questions (FAQ)

Q1: How does the CG125 CDI improve engine performance?

The CDI unit timing control delivers a highly precise and high-energy spark to the combustion chamber. This dramatically improves combustion efficiency, providing smoother performance across all RPM ranges, better fuel economy, and increased overall power output.

Q2: Why is a CDI unit more reliable than older contact-breaker systems?

Traditional systems rely on mechanical contact breakers which degrade rapidly over time due to wear and tear. A CDI unit has no moving parts or mechanical contacts, drastically reducing the risk of ignition system failure.

Q3: Is the CG125 CDI durable in wet or dusty riding conditions?

Yes. The CDI features a protective resin-based or plastic-enclosed housing that shields all internal electronic components from water splashes, mechanical vibrations, dust, and severe temperature fluctuations.

Q4: Can I use this unit as a direct replacement for my stock CG125 CDI?

Absolutely. This CDI is designed for easy OEM replacement using standard multi-pin connectors that plug directly into the CG125 motorcycle's original wiring harness without complex adjustments.

Q5: What are the standard electrical specifications of the CG125 CDI?

The unit generally operates on a 12V DC system, generates a powerful spark output voltage ranging from 15,000V to 25,000V, and contains a capacitor capacity between 47 to 100 microfarads.

Q6: What is the operating temperature threshold of this unit?

The unit is manufactured to perform reliably in extreme temperature environments, featuring an operating temperature range of -20°C to +80°C.
