The CG125 CDI is an advanced ignition system upgrade over traditional contact-breaker ignition setups. It primarily consists of a capacitor, a trigger circuit, and a high-voltage output stage. The capacitor stores electrical energy, which is then rapidly discharged through the ignition coil when triggered by the engine's rotation sensor. This process creates a high-voltage spark that ignites the fuel within the engine.

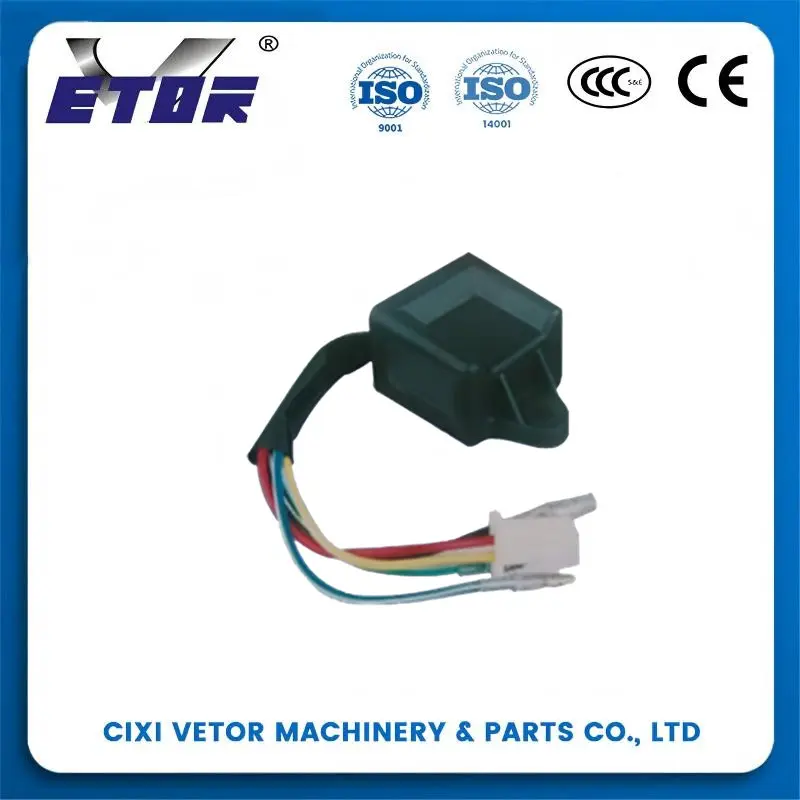

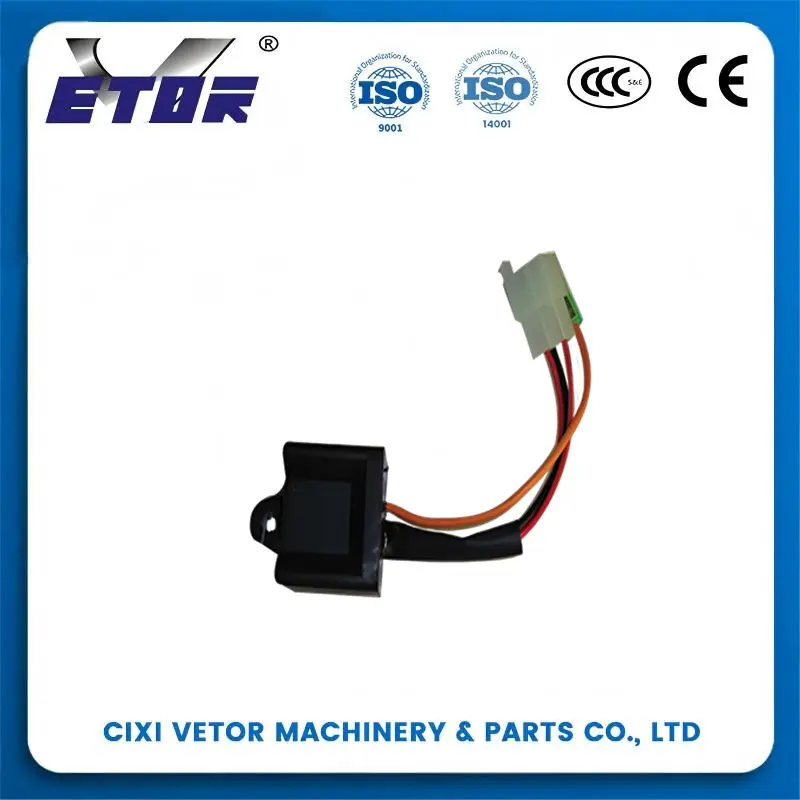

The CDI unit is compactly designed to fit into the limited space available on a CG125 motorcycle. It is typically encased in a durable plastic or resin-based housing that protects the internal electronic components from dust, moisture, and mechanical vibrations during the motorcycle's operation.
Provides a consistent and powerful spark, ensuring reliable engine starting, even in cold conditions or after long periods of non-use. This reliability is crucial for daily commuting.
With no mechanical contacts, this setup eliminates the wear and tear common to traditional contact-breaker ignition systems, significantly reducing the risk of component failure.
Delivers a precisely timed and high-energy spark to enhance engine combustion efficiency, leading to better fuel economy, increased power output, and smoother performance across RPM ranges.
The enclosed housing protects the CDI unit against dust, water splashes, and temperature variations, allowing optimal performance in both urban environments and rugged terrains.
Acts as a direct replacement for original CDI units in CG125 motorcycles when original parts fail or show reduced performance over time.
Perfect for motorcycle enthusiasts looking to enhance engine power, throttle response, and overall drivability during custom tuning.
An essential component for routine service in motorcycle rental fleets and commercial logistics services relying on CG125 models.
Commonly stocked in repair shops to quickly address common ignition-related faults and restore optimal cycle operation.
| Specification Item | Details |
|---|---|
| Operating Voltage | Usually 12V DC (can vary depending on the specific model, some may support AC input from the motorcycle's magneto) |
| Spark Voltage | Generates a spark voltage of approximately 15,000 - 25,000 volts |
| Capacitor Capacity | Typically in the range of 47 - 100 microfarads |
| Operating Temperature Range | -20°C to +80°C |
| Dimensions (approximate) | Length: 60 - 80mm, Width: 30 - 40mm, Height: 20 - 30mm |
| Weight | Around 100 - 150 grams |
| Wiring Harness Connector Type | Specific multi-pin connectors designed to match the CG125 motorcycle's electrical system |
| Certification | May comply with industry standards such as ISO 9001 for quality management and relevant electrical safety standards |
The CDI unit uses a capacitor to store electrical energy and discharge it rapidly through the ignition coil, creating a highly stable and powerful spark. This process guarantees reliable startup even during cold weather or after extended periods of inactivity.
Unlike contact-breaker ignition systems that rely on moving parts prone to wear and mechanical degradation, the CG125 CDI features no mechanical contacts. This solid-state electronic design reduces overall component failures and extends system life.
The CDI unit is encased in a durable, resin-based or plastic protective housing. This structure makes the internal components highly resistant to moisture, dust, water splashes, and thermal variations, making it suitable for both off-road and city riding.
This CDI module is designed to operate efficiently under extreme temperature conditions ranging from -20°C to +80°C, ensuring reliable performance in various regional climates.
Yes, it features specific multi-pin connectors designed to perfectly match the standard wiring system of CG125 series motorcycles, making replacement and installation quick and straightforward.
The module operates on a typical system voltage of 12V (either DC or AC magneto-derived) and generates an output spark voltage ranging between approximately 15,000 and 25,000 volts for robust fuel ignition.
