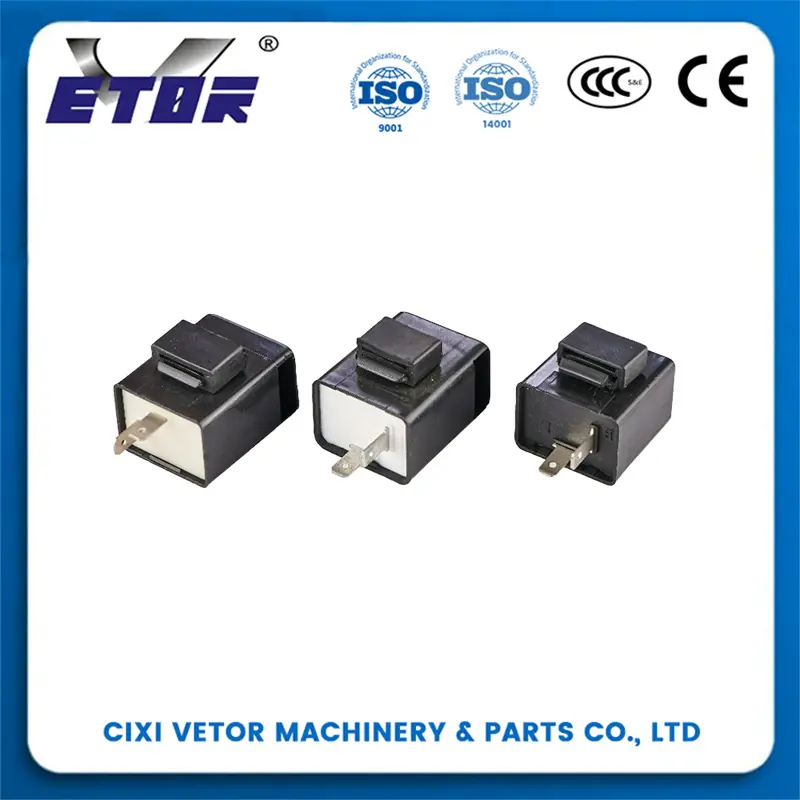

The CG125 flasher is designed to work with the motorcycle's 12-volt electrical system. It typically has a compact, rectangular shape and is encased in a durable plastic housing to protect it from the vibrations, dust, and moisture encountered during motorcycle operation.
Inside, the flasher contains components such as a bimetallic strip (in thermal-type flashers), an electronic circuit (in electronic flashers), or a combination of both.
By making the turn signals blink, the flasher significantly improves the motorcycle's visibility to other road users. This reduces the risk of accidents caused by misunderstandings about the motorcycle's direction intentions.
Modern CG125 flashers, especially electronic ones, are highly reliable. They can withstand frequent use and are less likely to develop issues like inconsistent blinking rates or failure to blink compared to older-style thermal flashers.
Constructed from quality materials, these flashers have a relatively long lifespan. They can operate for thousands of blinking cycles without needing replacement, minimizing maintenance costs for motorcycle owners.
Most CG125 flashers are designed for straightforward installation. They usually come with standardized electrical connectors that can be easily plugged into the motorcycle's wiring harness, allowing even novice riders to replace a faulty flasher on their own.
The primary application of the CG125 flasher is to control the blinking of the front and rear turn signal lights. This includes both left and right turn signals, ensuring that the motorcycle can communicate its turning intentions clearly on the road.
In some cases, the flasher can also be used to operate emergency hazard lights. When activated, all the turn signal lights blink simultaneously, alerting other road users that the motorcycle is in a hazardous or stationary situation.
For motorcycle enthusiasts who upgrade or customize their CG125's lighting system, the flasher can be replaced or adjusted to work with different types of turn signal bulbs, such as LED bulbs, which may require a specific type of flasher to function properly.
| Specification Item | Details |
|---|---|
| Operating Voltage | 12V DC |
| Blinking Rate | Typically 60 - 120 blinks per minute, which is the standard rate for ensuring good visibility without being too fast or too slow |
| Current Rating | Can handle currents suitable for the turn signal bulbs on the CG125, usually around 0.5A - 2A depending on the bulb type (incandescent or LED) |
| Type | Available in thermal - type or electronic - type. Electronic flashers are becoming more popular due to their consistent performance |
| Number of Pins | Usually 2 - pin or 3 - pin. A 2 - pin flasher is commonly used for basic turn signal operation, while a 3 - pin flasher may have additional functionality for hazard light operation |
| Operating Temperature Range | -20°C to +70°C, enabling it to work in a wide range of environmental conditions |
| Dimensions (approximate) | Length: 30 - 40mm, Width: 20 - 30mm, Height: 20 - 30mm |
| Weight | Approximately 20 - 40 grams |
| Housing Material | Durable, flame - retardant plastic for protection against external elements |
The CG125 flasher is specifically designed to work with standard 12-volt DC electrical systems on motorcycles.
It typically provides a blinking rate of 60 to 120 blinks per minute, which delivers optimal visibility on the road without being too fast or too slow.
Yes, during aftermarket modifications, the flasher can be replaced or adjusted to ensure compatible functionality with modern lighting systems like LED bulbs.
It is encased in a durable, flame-retardant plastic housing that guards the internal electronic components or bimetallic strips against dust, moisture, and operational vibrations.
It is built to operate reliably in a wide range of environmental conditions, spanning temperatures from -20°C up to +70°C.
No, it features a highly user-friendly design with standardized electrical connectors that plug directly into the motorcycle’s wiring harness, allowing for easy installation.
